Residential Under-Counter RO Systems


50 GPD Membrane at 65 PSI and 77° or 60 PSI Net, 77°F

Basis Tap Water at 67°F and 60 PSI, Reject = 20 GPD, Feed TDS = 500 PPM, Osmotic Pressure = 5 PSI



Tank Condition Tap Pressure (PSI) Tank Pressure (PSI) Net Pressure* Product GPD (approx.) Recovery (%)
Empty 60 20 35 29 12.6
Partial 60 30 25 21 9.5
Full 60 40 15 12.5 5.8

*Net Pressure = Tap pressure - Osmotic pressure - Tank pressure

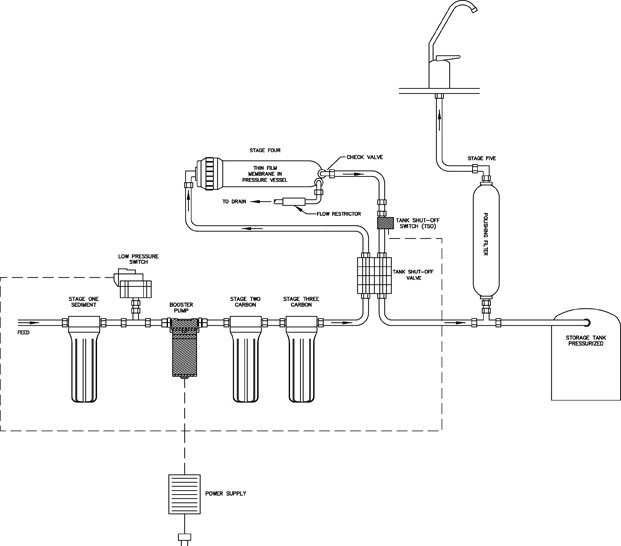

Flow Diagram - Residential RO System

(Thin Film Membrane) with Booster Pump
